ENVIRONMENTAL
SMART SENSOR
MULTI-SENSOR GOES SMART!
GET HIGH PRECISION TEMPERATURE, HUMIDITY, BAROMETRIC PRESSURE AND ORGANIC COMPOUNDS (VOC) READINGS
ABOUT

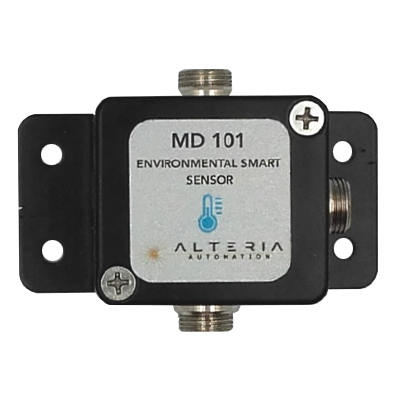

The MD 101 is a combined sensor that includes an advanced programmable micro-controller and a sub GHz wireless system on the ISTM bands that does not require any licensing from the FCC.
Is range is up to 3 Kms featuring easy connectivity even on extensive industrial environments and large facilities.
Sensor Networking
Its wireless network-ready architecture allows the installation of hundreds of sensors that report to a Node or a Gateway that is then connected to a local server or to the Cloud.
We have sensors to resolve any particular use. Contact us with your specs for a free consultation.
FEATURES
Useful
Acquire the key environmental and pollution variables from industrial environments.
Precise
Plug-in and get data right away, no calibration required.
Flexible
Forwards data through an industrial wireless system or serial port at your choice
Non intrusive
No installation. A magnetic system or two fasteners secure the sensor to its place
Reliable
Does not use WIFI or Bluetooth
Quality
Manufactured with top US and European made parts
SPECIFICATIONS
Transducers:
- Temperature (C/F)
- Barometric Pressure (Hpa)
- Dew Point (C/F)
- Humidity (Rh %)
- Organic pollutants (VOC, ppm)
Battery: Power / Data Bus
Battery life: From 3 to 5 years
Reading data: From 0.1 Sec to 1 Hour
Output: Digital on the desired format
Connectivity: Network connection Wireless sub Ghz or wired Serial
Range: 3 kilometers without repeaters
Security: Double encryption
OPC / UA compatibility: Yes
Dimensions: 50 x 50 x 20 mm
Weight: <0.5 Kg/1Lb
Environmental: IP 67, Resistant to harsh environments
Physical: ABS plastic box
Storage temperature: -40 C / 95C
