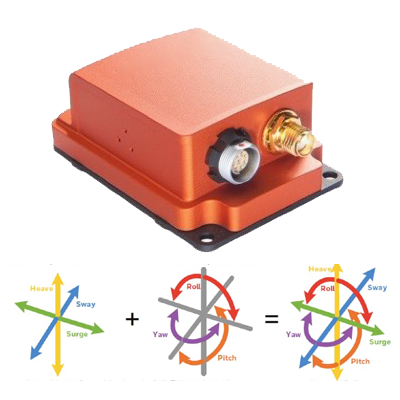

INERTIAL MEASURING UNIT
SMART SENSOR
10 Dimension Multi-Sensor
Precision Inertial Measuring
Unit
3 axis Acceloremeter
3 axis Compass with digital movement processing
Temperature
3 axis Giroscope
Sensor Fusion Processing
GNSS Input
ABOUT
IMU 110 is a multiple sensors based on MEMS technology, that combines high performance, and high accuracy performance, sensor fusion processing and low current consumption, The perfect measuring tool for mobile measurement units.
Featuring a mix of pre-processing embedded edge with ALTERIA’s Sensor Fusion technology combines different transducer readings, to provide the most
complete and accurate movement information available in the market.
A 16-bit processor provides a maximum resolution of 0.01º Sexagesimal.
The accelerometer sensitivity is adjustable from 2G full scale to 16 G, adapting easily to the intended application.
Fexibility: The compass magnetic field range is +/- 4900 μTeslas and the gyro
sampling readings are adjustable between 250 dps and 2000 dps.
It is an essential sensor for monitoring machinery in motion such as robotic cells and the in the transportation sector. We have sensors to solve any need. Call us to discuss your application.
FEATURES
Accurate
0.01º resolution
Fast
Sampling rate is up to 2000 times per second
Smart
A mix of pre-processing embedded edge with ALTERIA’s Sensor Fusion technology combines different transducer readings on a single data output string
Non-intrusive
Installs everywhere clear from external magnetic fields
Flexible
Adjustable full-scale readings and sampling rates makes this multisensor an ideal platform to develop IMU applications. GNSS input
Reliable
Uses top quality parts manufactured in Europe and the United States
SPECIFICATIONS
Physical variables:
- Linear acceleration
- Inclination
- Magnetic and gravity fields
- Rotation (attitude)
- Vibration
- Shock and free fall
- Temperature
Power supply: Data bus. 5 Volt
Sampling: 2000 Samples/Sec
Output: Digital Data
Connectivity: Network
Wireless: ISTM Sub GHz wireless or Serial
Range: 2 Miles with standard antennas
Security: Double encrypted
Dimensions: 50 x 50 x 30 mm
Weight: < 1 Kg
Environmental: IP 67, harsh environment resistant
Enclosure: ABS plastic
Storage temperature: -20C/ 65C
