Personnel Tracking
SMART SENSOR
GPS/BLUETOOTH
COMBINATION TRACKING
ALL-IN-ONE
INDOOR/OUTDOOR
PERSONNEL LOCATION & SAFETY TRACKER
ABOUT
The LOC 101 is an innovative development on the personnel location and real-time health assessment field. This is one of the few devices in the market with both simultaneous indoor and outdoor location capability.
After talking with the Industry we have developed a customizable platform where reading internal or wireless external sensors and creating custom alarms can be done in a few minutes without writing a single line of code, even by inexperienced users.
More advanced features are possible by customizing the firmware without expensive overhead development fees.
This product is agnostic and can be used on any GIS platform. You can use our own tracking software, and track events from any mobile or smart device.
Sensor Network
Its design allows a dual connection via GPS when outdoors and via bluetooth to the location gateways when indoor.
FEATURES
Versatile
Both Indoor and outdoor tracking are possible
Non-Instrusive
Fits in you pocket. Small device filled with powerful features: Use your imagination to create applications
Rugged
Innovative high impact hard plastic enclosure
Connected
Connects to health monitoring smart wrist-band devices via Bluetooth
Flexible
Programmable alarm button serves to start tracking, panic alarm or any other function desired
Useful
Internal built-in sensors measure acceleration (shock, free-fall), temperature, humidity, dew point and VOC levels (*Other sensor measures under special order)
Reliable
Uses top quality parts manufactured in Europe and the United States.
SPECIFICATIONS
Physical variables:
- Linear acceleration
- Vibration
- Shock and free fall
- Temperature
- Dew Point
- Humidity
- Barometric pressure
- VOC level
Power supply: High power li-ion
Charging port: USB micro or C
EMC: Heavy industrial level IEC61000
Data reading: Selectable from 1 S/ Sec.
Connectivity: Simultaneous Sigfox Bluetooth and WIFI
Outdoor location: GPS
Indoor location: BLE 4.2 RSSI based
Dimensions: 90 x 44 x 16 mm
Weight: 0,5 Kg/ 1Lb
Environmental: IP 67
Physical: Hard high-impact plastic
Storage temperature: -10C / 65C
RELATED PRODUCTS
Connectivity Products
Connect your sensors to the cloud

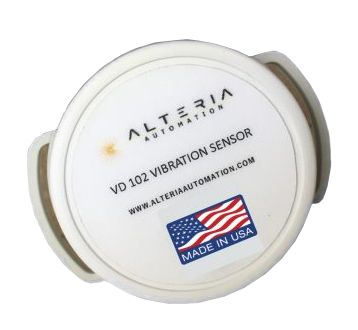

Smart Vibration Sensor
