SMART SENSOR ASSET
TRACKING
LOGISTICS GPS/BLUETOOTH
LOCATION SENSOR DEVICE
ALL-IN-ONE
INDOOR/OUTDOOR
ASSET TRACKING
ABOUT

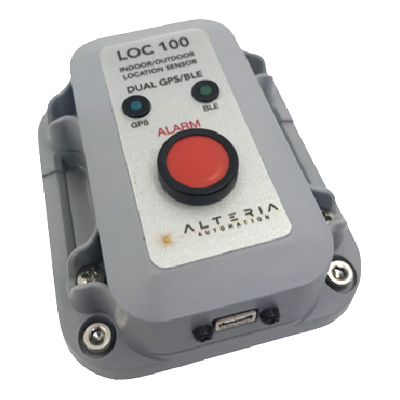

The LOC 100 is an innovative development on the Industrial tracking and location field. This is one of the few devices in the market with both simultaneous indoor and outdoor location capability.
After talking with the Industry we have developed a customizable platform where reading internal or external sensors and creating custom alarms can be done in a few minutes without writing a single line of code, even by inexperienced users.
More advanced features are possible by customizing the firmware without expensive overhead development fees.
This product is agnostic and can be used on any GIS platform. You can use our own tracking software, and track events from any mobile or smart device.
FEATURES
Versatile
Both Indoor and outdoor tracking are possible
Non-Instrusive
Installs everywhere, secured by four Neodymium magnets
Rugged
Innovative high impact hard plastic enclosure can use plastic or metal strap ties for non-magnetic assets
Easy to use
Auto-switch automatically turns on the device when is attached to a surface
Flexible
Programmable alarm button serves to start tracking or any other function desired
Useful
Internal built-in sensors measure acceleration (shock, free-fall), temperature, humidity, dew point and VOC levels (*Other sensor measures under special order)
Reliable
Uses top quality parts manufactured in Europe and the United States.
SPECIFICATIONS
Physical variables:
- Linear acceleration
- Vibration
- Shock and free fall
- Temperature
- Dew Point
- Humidity
- Barometric pressure
- VOC level
Power supply: High power li-ion
Charging port: USB micro or C
EMC: Heavy industrial level IEC61000
Data reading: Selectable from 1 S/ Sec.
Connectivity: Simultaneous Sigfox Bluetooth and WIFI
Antennas: Built-in antennas
Outdoor location: GPS
Indoor location: BLE 4.2 RSSI based
Dimensions: 90 x 90 x 35 mm
Weight: 1 Kg/ 2Lb
Environmental: IP 67
Physical: Hard high-impact plastic
Storage temperature: -10C / 65C
