ULTRASOUND
SMART SENSOR
Acoustic Energy

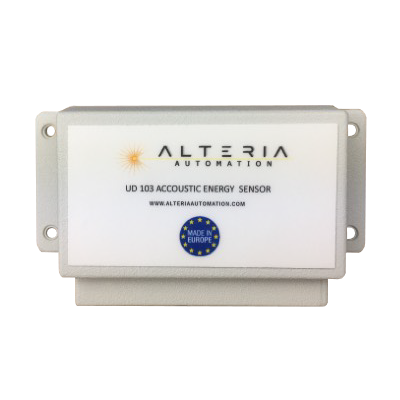

Ultrasound Sensor
The best tool for Industrial Predictive Maintenance
Earliest failure warning
Thousands of applications throughout industry
ABOUT
The UD 103 is a real revolution in the field of predictive maintenance, using patent pending technology by ALTERIA. The analysis of acoustic energy is a very powerful tool to analyze the condition of machinery across many industries and infrastructure as:
- Power distribution and high voltage
- Pneumatic machinery
- Rotating machinery
- Power electronics, VFD drives
- Aerospace: pressurization leaks
- Gearbox and bearing maintenace
The UD 103 is smart sensor that forwards simplified pre-processed data such as the frequency of each acustoc energy peak, the bandwidth, amplitude, background noise etc, in order to save on resources in connectivity and data postprocessing on the server side.
FEATURES
Very effective
Detects the internal material stress , producing the earliest warning before the failure happens
Accurate
Ambient noise and vibration do not affect the ultrasonic readings
Smart
Featuring ALTERIA's embedded pre-processing technology. Saving 93% of the data payload at the output
Easy to use
Forwards data through an industrial wireless system or serial port
Non-intrusive
No installation. Just secure the sensor with adhesive to the machinery
Reliable
Built with top quality parts manufactured in the United States and Europe
SPECIFICATIONS
Physical variables:
- Ultrasound frequencies
- Amplitude
- Bandwidth
- Background noise
Power: Data Bus. 5 Volts
Sampling: 200,000 Samples/Sec
Pre-processing: Algorithm FFT
Frequency range: 15,000 to 96,000 Hz
Output: Pre-processed Digital
Connectivity: Network
Wireless: ISMT Sub GHz or Serial
Range: 2 Miles with standard antennas
Security: Double encryption
Dimensions: 70 x 50 x 20 mm
Weight: < 0.5 Kg
Environmental: IP 67, harsh environment resistant
Enclosure: ABS plastic enclosure
Storage temperature: -40 C/ 95C
